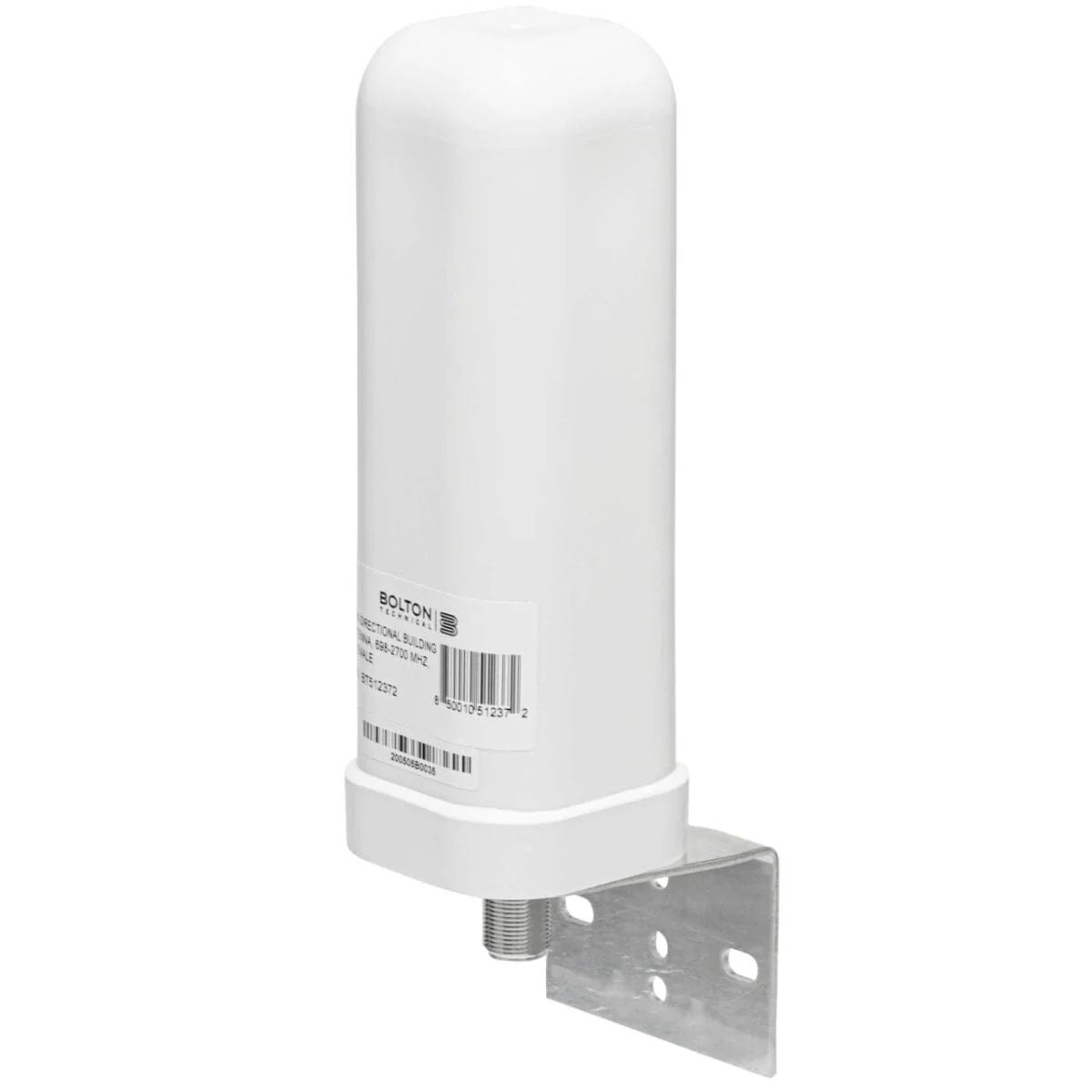

4G Outdoor Omni-Directional Building Antenna 50 Ohm, PIM 140
No more annoying dropped calls, poor call quality & slow Internet!
The 4G Omni Building Antenna is a 50 Ohm outdoor mounted antenna used to pull in existing 3G & 4G LTE signals from your nearest cell tower source. It features up to +4.0 dB gain. Designed for fixed building installations outside a home, office, or commercial space.
- Broadcast 3G & 4G LTE signal indoors
- Cover 698 – 960 & 1710 -2700 MHz cellular frequencies
- For all 50 Ohm in-building signal boosters

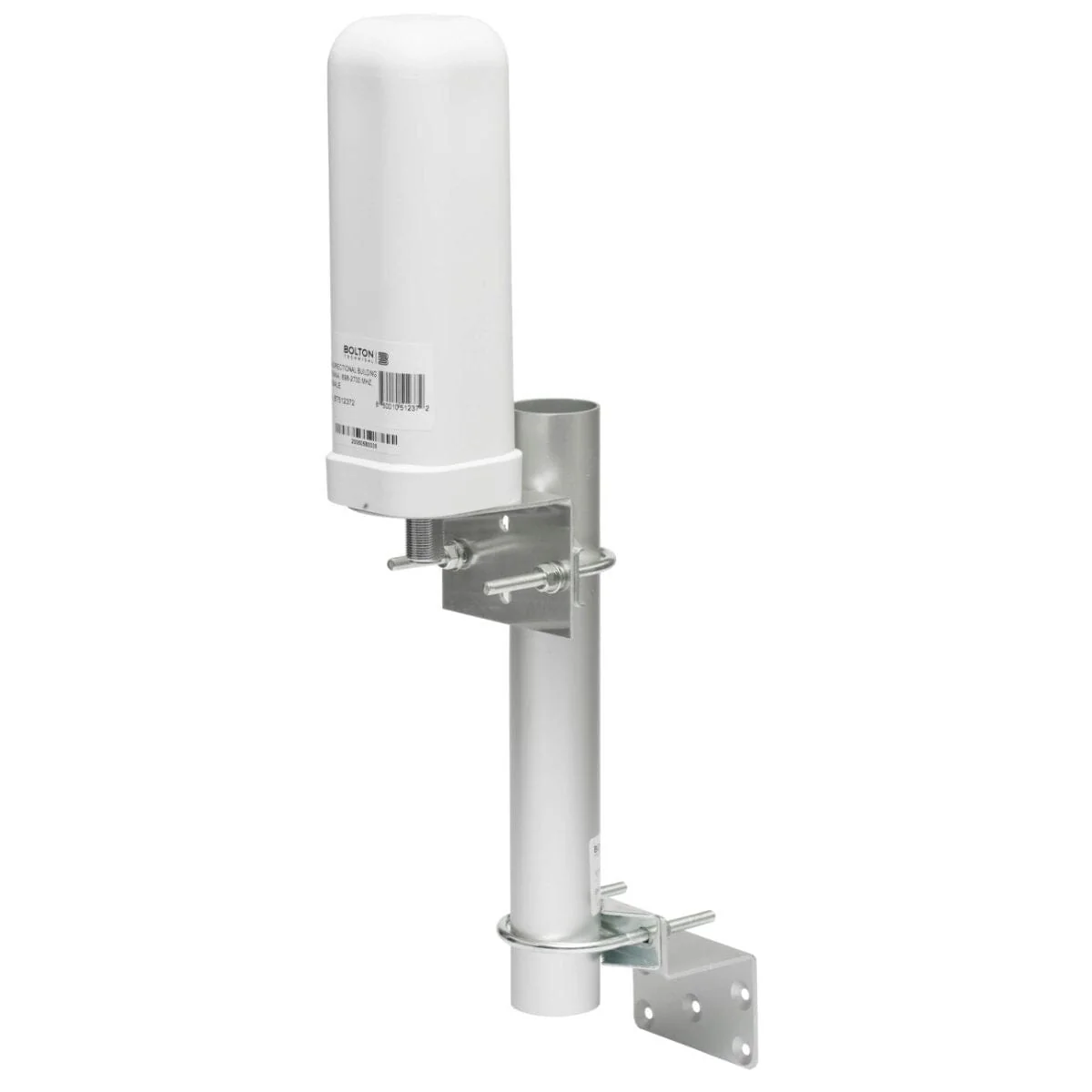

- Multi-mount bracket for mast or wall
- Weather resistant, RoHS compliant
- Up to 4 dB gain
Not sure whether to choose an Omni-directional or Directional Antenna? Read our Blog on Choosing Between a Directional and Omni Antenna
Specs
Frequencies & Gains
| 698-960 MHz | +3.5 dB |
| 1710-2700 MHz | +4 dB |
| Polarization | Vertical |
| VSWR | <1.8:1 |
| Impedance | 50 Ohm |
| Max Power Output | 100 W |
| Connectors | N-Female |
| Radome material | UV resistant PVC |
| Dimensions | 2.5 x 9.8 in / 6.3 x 25 cm |
